Name: A/C Condenser 11M8-90370 for Hyundai Excavator R55-7 R55-7A R55W-7 R55W-7A R60-7(CHINA)
SKU: Yearn11M8-90370,11M890370
Price: 322.15 USD

Details

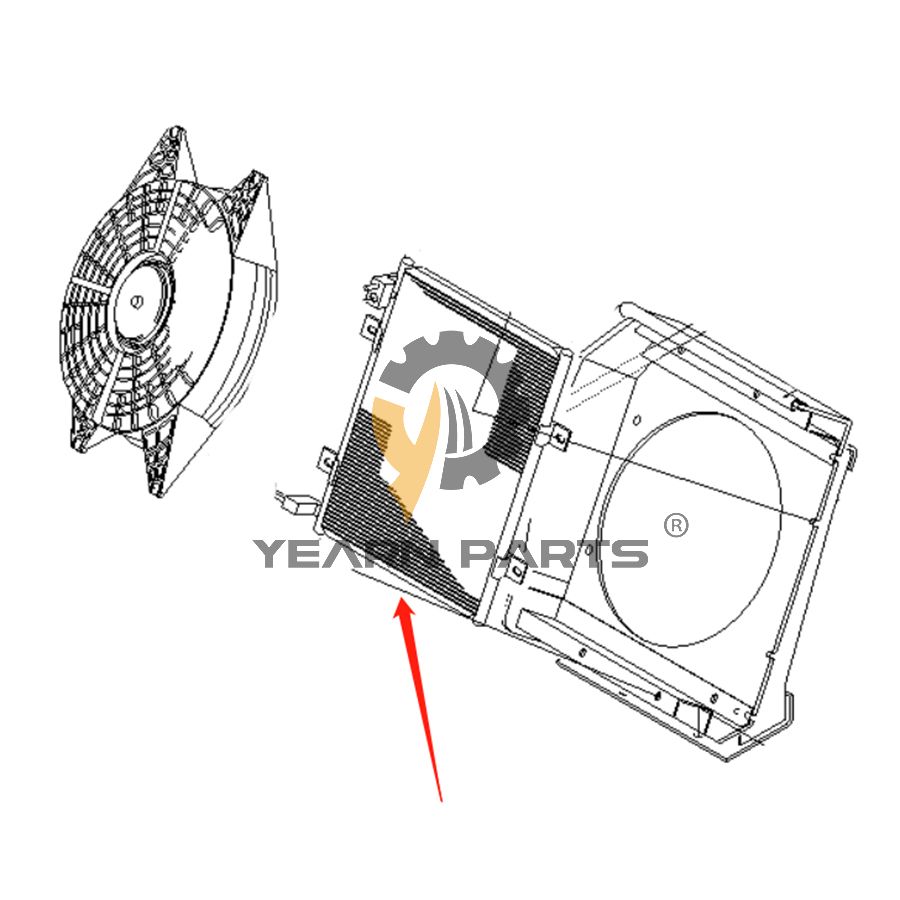

Air Conditioning Condenser 11M8-90370 for Hyundai Excavator R55-7 R55-7A R55W-7 R55W-7A R60-7(CHINA)

Part NO.:11M8-90370,11M890370

Machine Models:
7 SERIES WHEEL EXCAVATOR R55W7 R55W7A
7-SERIES CRAWLER EXCAVATOR R55-7 R55-7A RC60-7 Hyundai

Parts on group AIR CON & HEATER UNIT

Pos.	Part No	Qty	Parts name
1	11M8-90011	[1]	AIR CON & HEATER ASSY
1	11M8-90012	[1]	AIR CON & HEATER ASSY
1	11M8-90013	[1]	AIR CON & HEATER ASSY
1-1.	11M8-90100	[1]	AIR CON & HEATER UNIT
1-2.	11M8-90110	[1]	CONTROLLER
N1-3.	11M8-90210	[1]	COMPRESSOR ASSY
1-3.	11M8-90970	[1]	COMPRESSOR ASSY
1-4.	11M8-90370	[1]	CONDENSER ASSY
1-5.	11M8-90160	[1]	DRYER-RECEIVER
1-6.	11M8-90240	[1]	PULLEY-TENSION
1-7.	11M8-90250	[1]	V-BELT
1-7.	11M8-90410	[1]	V-BELT
1-7.	11M8-90250	[1]	V-BELT
1-8.	11M8-90260	[1]	HOSE-SUCTION
1-8.	11M8-90980	[1]	HOSE-SUCTION
1-81.	11M8-90810	[1]	O-RING
1-82.	11M8-90930	[1]	O-RING
1-9.	11M8-90270	[1]	HOSE-DISCHARGE
1-9.	11M8-90990	[1]	HOSE-DISCHARGE
1-91.	11M8-90920	[1]	O-RING
1-92.	11M8-90950	[1]	O-RING
1-10.	11M8-90280	[1]	HOSE-LIQUID(A)
1-101.	11M8-90940	[2]	O-RING
1-11.	11M8-90290	[1]	HOSE-LIQUID(B)
1-111.	11M8-90950	[2]	O-RING
1-12.	11M8-90130	[1]	DISTRIBUTOR
1-13.	11M8-90180	[1]	GROMMET
1-14.	11M8-90190	[1]	GROMMET
1-15.	11M8-90170	[1]	FILTER-CIRCULATE
1-15.	11M8-90171	[1]	FILTER-CIRCULATE
1-16.	11M8-90320	[2]	HOSE-HEATER
2	11M8-90224	[1]	BRACKET-CONDENSER
2	11M8-90225	[1]	BRACKET-CONDENSER
3	S037-104052	[5]	BOLT-W/WASHER
4	S131-051546	[4]	SCREW-W/WASHER
5	S109-080956	[4]	BOLT-SOCKET
5	S109-100356	[4]	BOLT-SOCKET
5	S018-100352	[4]	BOLT-HEX
6	S411-060002	[10]	WASHER-SPRING
7	S403-061002	[10]	WASHER-PLAIN
8	S037-123522	[4]	BOLT-W/WASHER
9	S201-060002	[10]	NUT-HEX
11	S037-102022	[1]	BOLT-W/WASHER
12	S572-220006	[4]	CLAMP-HOSE,WIRE TYPE
12	S572-220006	[2]	CLAMP-HOSE,WIRE TYPE
13	21M6-56031	[1]	ELBOW
14	S015-060302	[4]	BOLT-HEX
14	S015-060202	[4]	BOLT-HEX
15	S017-080502	[2]	BOLT-HEX
15	S017-080552	[2]	BOLT-HEX
16	E127-3136	[1]	VALVE-CUT OFF
17	31E7-0311	[2]	CLAMP-HOSE
18	S035-061522	[4]	BOLT-W/WASHER
19	S411-080002	[8]	WASHER-SPRING
20	S403-081002	[4]	WASHER-PLAIN
20	S403-101002	[5]	WASHER-PLAIN
21	11M8-90230	[1]	COVER
21	11M8-90400	[1]	COVER
21	11M8-90230	[1]	COVER
22	S131-051026	[4]	SCREW-W/WASHER
23	11M8-90420	[1]	SPONGE
24	S772-005300	[1]	WEATHER STRIP
24	S772-005200	[1]	WEATHER STRIP
25	11M8-90340	[1]	BRACKET-FILTER
26	11M8-90350	[1]	BRACKET-FILTER
27	S441-080002	[6]	WASHER-HARDENED
28	11M8-90620	[1]	FAN & SHROUD ASSY
29	11M8-90380	[1]	CLAMP-LOWER
30	11M8-90390	[1]	CLAMP-UPPER
31	S035-082526	[1]	BOLT-W/WASHER
32	31E7-0314	[1]	CLAMP-HOSE
33	S035-083526	[1]	BOLT-W/WASHER
34	S109-100456	[1]	BOLT-SOCKET
35	S201-101002	[1]	NUT-HEX
36	S015-080352	[4]	BOLT-HEX
36	S015-080252	[4]	BOLT-HEX
41	S772-003200	[1]	WEATHER STRIP
42	S520-020000	[2]	CLAMP-HOSE
