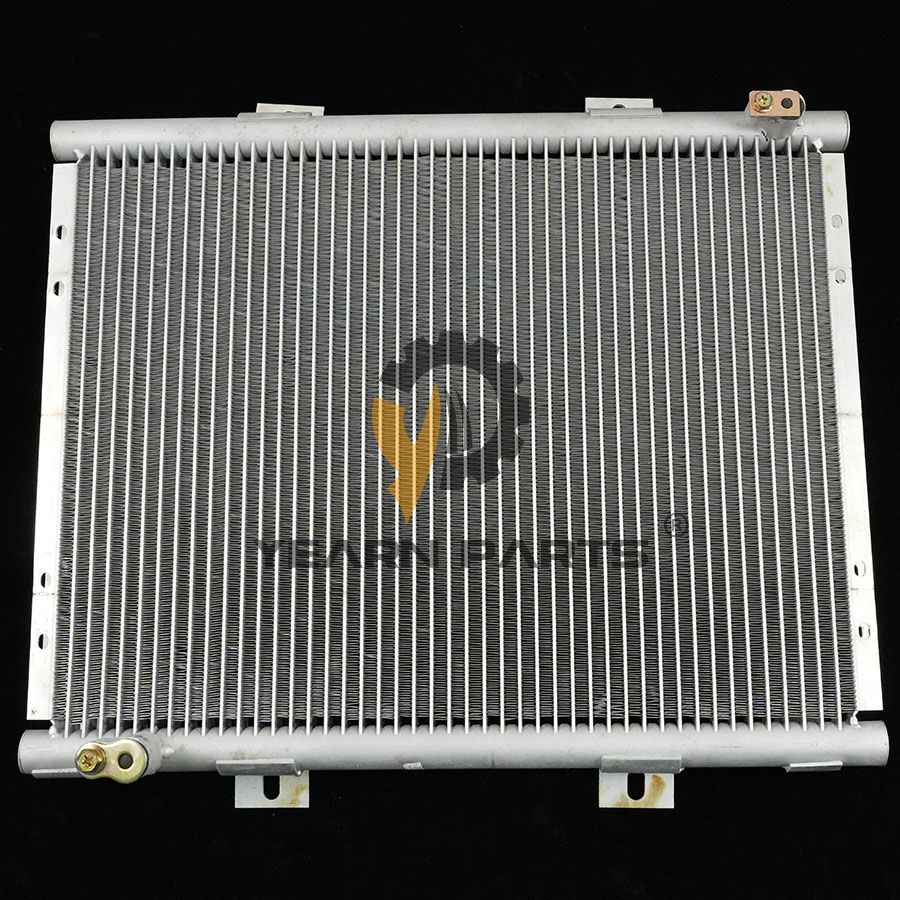

Name: A/C Condenser 11ML-90610 for Hyundai Excavator R60CR-9 R60CR-9A R80CR-9 R80CR-9A
SKU: Yearn11ML-90610,11ML90610
Price: 322.15 USD

Details

Air Conditioning Condenser 11ML-90610 for Hyundai Excavator R60CR-9 R60CR-9A R80CR-9 R80CR-9A

Part NO.:11ML-90610,11ML90610

Machine Models:
9-SERIES CRAWLER EXCAVATOR R60CR-9 R60CR-9A R80CR-9 R80CR-9A Hyundai

Parts on group AIR CON & HEATER UNIT

Pos.	Part No	Qty	Parts name
2	11M9-90100	[1]	CONTROL-AIRCON
2	11ML-90100	[1]	CONTROLLER
3	11ML-90610	[1]	CONDENSER ASSY
4	11M9-90200	[1]	COMPRESSOR
5	11N6-90060	[1]	DRIER-RECEIVER
6	11M9-90260	[1]	BELT-V
7	11N1-90180	[1]	PULLEY-TENSION
8	11N6-90120	[1]	BRACKET-R/DRIER
9	11M9-90050	[1]	PIPE ASSY
10	11M9-90060	[2]	PIPE ASSY
11	11M9-90370	[1]	FILTER
12	11Q1-90501	[1]	HOSE-DISCHARGE
13	11ML-90812	[1]	HOSE-LIQUID(A)
14	11ML-90820	[1]	HOSE-LIQUID(B)
15	11ML-90830	[1]	SUCTION HOSE ASSY
15	11ML-90831	[1]	SUCTION HOSE ASSY
16	S520-027000	[2]	CLAMP-HOSE
17	S572-240006	[4]	CLAMP-HOSE,WIRE TYPE
18	S035-082056	[4]	BOLT-W/WASHER
19	S035-062556	[1]	BOLT-W/WASHER
20	11M8-90400	[1]	COVER
20	11M9-90720	[1]	COVER WA
21	11Q6-90290	[1]	BRACKET
22	11M9-90590	[1]	HOSE-DRAIN
22	11ML-90860	[1]	HOSE-DRAIN
23	21M6-56031	[1]	ELBOW
24	E127-3136	[1]	VALVE-CUT OFF
25	S109-100356	[4]	BOLT-SOCKET
26	S017-080556	[2]	BOLT-HEX
27	S411-100006	[4]	WASHER-SPRING
28	S403-08200B	[2]	WASHER-PLAIN
29	11M9-90362	[2]	HOSE-HEATER
29	11M9-90363	[2]	HOSE-HEATER
30	31E7-0311	[1]	CLAMP-HOSE
31	S037-102556	[4]	BOLT-W/WASHER
32	S131-051416	[4]	SCREW-W/WASHER
33	S035-083056	[1]	BOLT-W/WASHER
34	S035-061526	[2]	BOLT-W/WASHER
35	S018-100356	[1]	BOLT-HEX
36	S037-101556	[1]	BOLT-W/WASHER
37	S205-06100B	[2]	NUT-HEX
38	S037-101526	[2]	BOLT-W/WASHER
39	31L7-10200	[2]	CLAMP-TUBE
39	31L7-10200	[1]	CLAMP-TUBE
40	31L7-10270	[1]	CLAMP-TUBE
